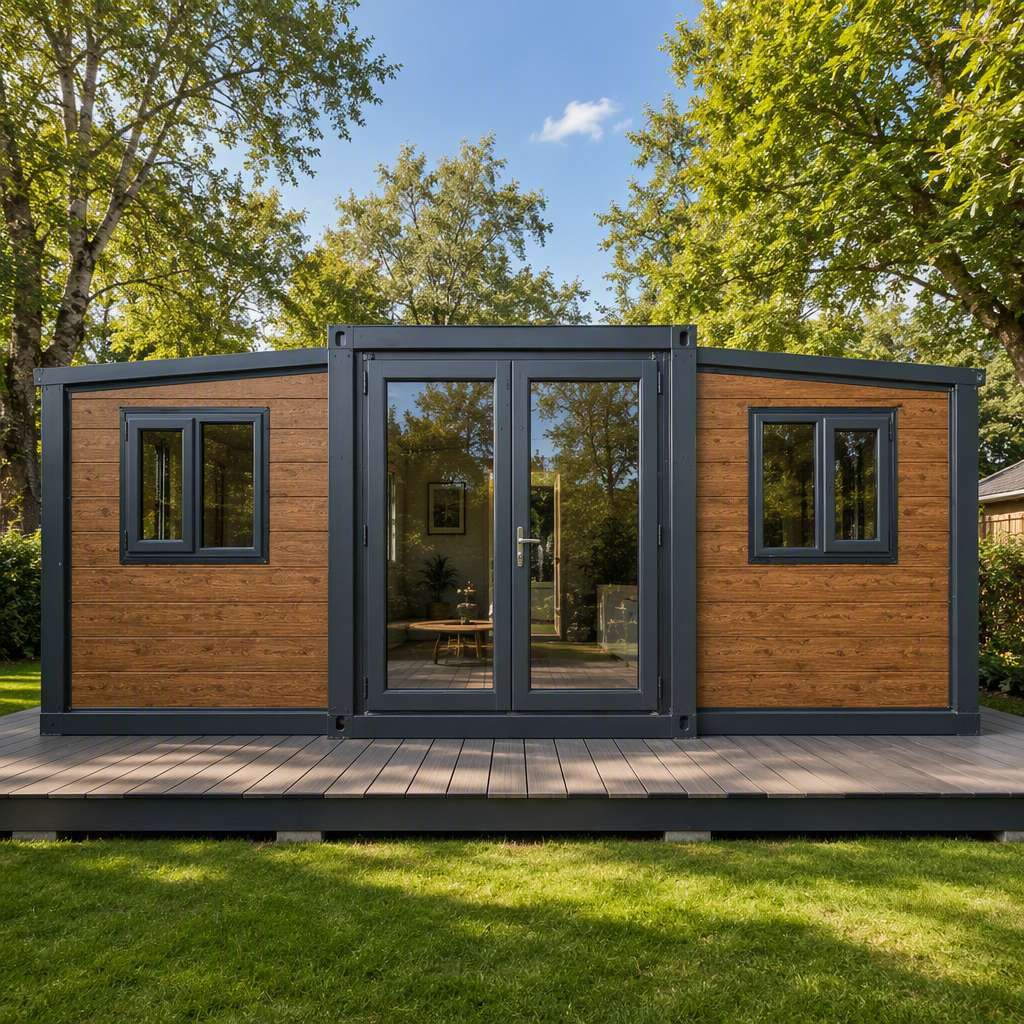

20ft Expandable Container House for European Backyard Studios - Sloped Roof Design
Product Overview
Elevate your residential landscape with a structure that breaks the mold of traditional modular architecture. This uniquely designed 20ft Expandable Container House is specifically engineered for European backyard studios, offering a distinct architectural flair that sets it apart from standard flat-roof models. The defining feature of this premium unit is its gracefully sloped rooflines on the expanded side wings. This angled design not only adds immense visual interest and a custom-built feel to the exterior, but it also serves a highly practical purpose by facilitating superior rainwater and snow runoff. Paired with a warm, natural oak-textured cladding and sophisticated dark grey window framing, this unit seamlessly integrates into the manicured gardens and elegant suburban environments of France, Germany, and beyond.
Manufactured with uncompromising quality by Global House (Suzhou) Co., Ltd., this advanced modular studio is built to deliver decades of flawless performance. The robust foundation and framing of this 20ft expandable container house are constructed from heavy-gauge galvanized steel, guaranteeing absolute structural integrity even when fully expanded. Because European winters demand superior climate control, the walls, floor, and the unique sloped roof panels are heavily fortified with premium thermal insulation. The multi-pane, weather-sealed windows ensure that the sprawling interior remains completely draft-free, making it an ideal year-round space for a dedicated home office, a creative art studio, or a comfortable granny flat.
The logistical brilliance of this product provides an unparalleled advantage for homeowners. Traditional backyard builds are plagued by spiraling costs and endless contractor delays. However, this 20ft expandable container house arrives at your property fully prefabricated within a secure, standard-sized shipping footprint. Once positioned, the remarkably engineered side wings—complete with their distinctive sloped roofs—unfold and lock into place. This rapid expansion process multiplies the interior floor plan exponentially in a matter of hours. You are instantly rewarded with a massive, high-ceilinged interior that feels open, airy, and exceptionally luxurious, completely redefining what is possible with rapid-deployment modular housing.
Specifications & Loading Capacity
| Type |
Extended Size L*W*H (mm) |
Folded Size L*W*H (mm) |
Area |
40HQ Loading |
Shipping Weight |
| 10FT Model |
2950 * 6480 * 2480 |
2950 * 2200 * 2480 |
20 m² |
4 SETS |
~1.8 - 2.0 Tons |
| 20FT Model |
5900 * 6480 * 2480 |
5900 * 2200 * 2480 |
38.2 m² |
2 SETS |
3.4 Tons |
| 30FT Model |
9000 * 6480 * 2480 |
9000 * 2200 * 2480 |
58.3 m² |
1 SET |
~4.5 Tons |
| 40FT Model |
11800 * 6480 * 2480 |
11800 * 2200 * 2480 |
76.4 m² |
1 SET |
5.4 Tons |
Detailed Material Specifications
- Main Steel Frame: Q235 Hot-dip galvanized steel, 2.5mm - 3.0mm thickness, with 6mm corner head liner plates for maximum structural safety.
- Wall Panels: External wall: 75mm EPS sandwich panel standard (Upgradable to Rock Wool for premium fire resistance). Internal partition: 50mm EPS sandwich panel.
- Roof System: External top: 0.35mm corrugated color steel sheet. Insulation: 50mm EPS sandwich panel. Internal ceiling: 200-type aesthetic ceiling board.
- Flooring: Subfloor: 18mm fireproof magnesite board (moisture-proof & insect-resistant). Surface: 2.0mm wear-resistant PVC floor leather (Upgradable to 4.0mm SPC flooring).
- Doors & Windows (Optional Upgrade): PVC casement windows (with anti-insect screens) + Aluminum security door.
Available Upgrades: Broken bridge aluminum entrance doors (double glass), KFC doors, aluminum alloy sliding doors, broken bridge aluminum windows, plastic steel sliding windows, ceiling-to-floor glass windows, etc.
Color Customization: Wall panel colors: White, Red Wooden, Dark Gray. Frame colors: White, Black, Dark Gray. Optional: 16mm metal carved board as exterior wall decoration.
Target Applications
Project Camps (construction dormitories, site canteens, modular restrooms); Office Spaces (mobile office units, field command centers, temporary meeting rooms); Emergency Housing (post-disaster resettlement, refugee shelters, affordable pods); Utility Buildings (security booths, temporary clinics, mobile convenience stores).
How It Works (4-Step Deployment)
1. Unloading: Lift the folded unit onto leveled, hardened ground or simple concrete piers.
2. Unfolding Wings: Release the safety latches, lift the two roof sections in sequence, and then lower the floor sections.
3. Fixing Walls: Push the folded side walls outward to a vertical position and install the corner connectors.
4. Sealing: Apply prefabricated sealing strips and high-quality structural adhesive at joints to ensure a weather-tight finish.
Frequently Asked Questions
Q1: Are you a manufacturing factory or a trading company? Where is your factory located?
A: We are a direct manufacturing factory. Our plant is located in Zhenze Town, Wujiang County, Suzhou City, Jiangsu Province, China. We welcome global clients and third-party inspection agencies to visit us at any time.
Q2: What is the lifespan of this container house? Is it stable under extreme weather?
A: Under standard conditions, the galvanized steel frame has a lifespan of 15 to 20 years. Structurally, it is extremely safe; when properly anchored to a foundation, it can resist winds up to 200km/h and withstand up to a magnitude-9 earthquake outside.
Q3: Can the electrical and plumbing systems meet my local country's strict compliance standards?
A: Yes. We regularly export to regions with strict compliance requirements. We can pre-install electrical wiring, sockets, and plumbing systems that fully meet specific local certifications (such as CE for Europe or AU/NZS for Australia and New Zealand) to ensure fast council approval.
Q4: How long does it take to build? Do I need professional engineers?
A: No professional technicians are needed. We provide comprehensive installation videos and manuals. Generally, 2 workers can master the operation and complete a standard room setup within about 3 hours using basic lifting equipment.
Q5: What is your standard delivery time?
A: Delivery time depends on order quantities and customization. For standard sizes and configurations, delivery preparation generally takes 15 to 20 days after receiving the deposit (with standard scaling varying within 5-15 days depending on exact queue lines).
Q6: What should I provide to get a customized layout or design scheme?
A: It's very easy! If you have a sketch drawing or reference photo, you can send it to us directly. If not, simply notify us of your requirements, such as the total area, target usage, room/sanitary layout, and material preferences, and our design team will provide a detailed scheme and quotation.
